Drawbacks of having only one node

However in many situations one node is simply not enough. I can think of several reasons why you may need more than one node.

1. Downtime

   . If for any reason node has to be taken down for maintenance there will be no node left. There will be downtime when for example there is a need to upgrade a version of Parity.

2. Falling out of sync

   . Parity is great but not flaweless. It may occasionally fall out of sync for various reasons. Having multiple nodes allows us to temporarly re-route traffic from nodes which have fallen behind and query nodes which are in-sync.

3. Distributing load

   . There is only a certain level of requests/second on json-rpc that a single Parity node can sustain. Json-rpc interface becomes slow over this level and Parity node falls out of sync. This is especially important if node(s) is used from web dapp interface and number, and you can observe daily spikes in user engagement.

Infrastructure of jsonrpc-proxy

Big picture of what proxy does goes as follows:

1. A list of URL of out Parity node should be kept in DynamoDB. There is also a special URL called



   leader



   that points to Infura.

2. eth_getBlockNumber should be run on each of the nodes from the list every 60 seconds. The result is compared with the



   leader

   . For the node to be deemed healthy it has to respond and be no more than 10 blocks behind Infura. The



   health status



   of each node is saved to DynamoDB.

3. Change of health status of any node triggers regeneration of proxy config. Proxy config is simply an nginx .conf file that configures an upstream service which load-balances load between our nodes. If none of our nodes is healthy the generated config proxies all requests to Infura asa fallback. The config file is uploaded to S3 bucket.

4. Uploading config file to S3 bucket triggers update of ECS Service that runs



   nginx



   container with with generated config.

Monitoring nodes

The upside of using AWS services is that they come with default metrics out-of-box

Requests per second

Using built-in ELB metrics we can see the breakdown of requests coming to the proxy per response status codes.

Lateness to Infura

Also jsonrpc-proxy stack pushes it’s own metrics that shows diff between each node block number and Infura.

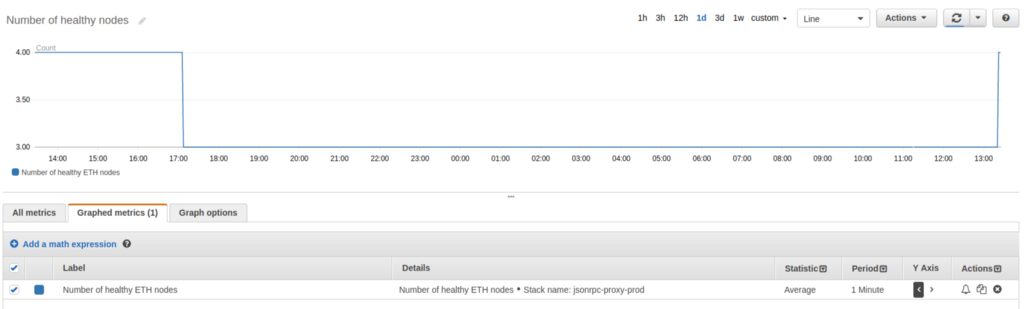

Number of healthy nodes

Another custom metric shows number of healthy nodes.

This metric is very useful for setting a CloudWatch alarm.

Deploying your own jsonrpc-proxy

The code of our solution can be found in git repository.

Build ECR container with nginx

Our service runs nginx container on ECS cluster which fetches its config from S3 bucket. The image of this service needs to be available on some AWS account as jsonrpc-proxy. You can build and upload image with following commands:

$ cd docker
$ AWS_DEFAULT_PROFILE=yourProfileName bash -x build_and_upload.sh

This will create an ECR repository, build image and push it. In the result you will see the ARN of created ECR repository that you need to put into config file in the next step.

Written above assumes that you use named profiles for command-line access. If you use session tokens skip the profile part.

Create config file

The stack is done so that it re-uses external resources that have to be passed as parameter in the config file. You can start by creating your own config file from the template provided:

$ cd services
$ cp config.yml.sample config.dev.yml # this assumes `dev` as stage name to be used later

Edit the file and specify inside:

• VPC you run in and subnet ids of private subnets

• List the security groups allowing access to all the Parity nodes

• ECS Cluster and Application Load Balancer. The stack creates neither own cluster nor load balancer, because typically you will not want to pay for dedicated resources just to run nginx inside.



  Please note

  : it’s necessary that ECS cluster is added to security groups allowing it to access Parity nodes

• ERC Image ARN created in previous step

Deploy stack

You will need to have serverless installed on your machine.

npm install -g serverless

Than you need to install stack dependencies:

cd services
npm install

Once this is done you can deploy stack to your AWS account:

$ AWS_DEFAULT_PROFILE=yourProfileName sls deploy -s dev

Finally you need to configure your DNS to point the name used by stack to your Application Load Balancer.

Add nodes to monitor

Next step is to actually tell the proxy what nodes to monitor:

$ DATA='{"body":"{\"url\":\"https://kovan.infura.io/kb56QStVQWIFv1n5fRfn\",\"is_leader\":true}"}'
$ sls invoke -f add_backend -d $DATA -s dev
{
  "statusCode": 201,
  "body": "{\"url\": \"https://kovan.infura.io/kb56QStVQWIFv1n5fRfn\", \"is_leader\": true, \"is_healthy\": false, \"when_added\": \"2018-07-02T11:50:47.762447\"}"
}

$ DATA='{"body":"{\"url\":\"http://kovan-parity-1.rumblefishdev.com:8545\",\"is_leader\":false}"}'
$ sls invoke -f add_backend -d $DATA -s dev
{
  "statusCode": 201,
  "body": "{\"url\": \"http://kovan-parity-1.rumblefishdev.com:8545\", \"is_leader\": true, \"is_healthy\": false, \"when_added\": \"2018-07-02T11:50:49.281928\"}"
}

If everything works fine in a minute you should be able to see that the monitoring kicks in and that the nodes are now healthy:

$ sls invoke -f list_backends  | python -c "import sys,json; print(json.loads(sys.stdin.read())['body'])" | python -m "json.tool"
[
    {
        "block_number": 7849400.0,
        "url": "http://kovan-parity-1.rumblefishdev.com:8545",
        "is_healthy": true,
        "is_leader": false,
        "when_added": "2018-07-02T11:50:49.281928"
    },
    {
        "block_number": 7849400.0,
        "url": "https://kovan.infura.io/kb56QStVQWIFv1n5fRfn",
        "is_healthy": true,
        "is_leader": true,
        "when_added": "2018-07-02T11:50:47.762447"
    }
]
